Core Photograph Loader

GeoSlicer module to extract core images from core box photos and build a complete volume with the core image.

Panels and their usage

Figura 1

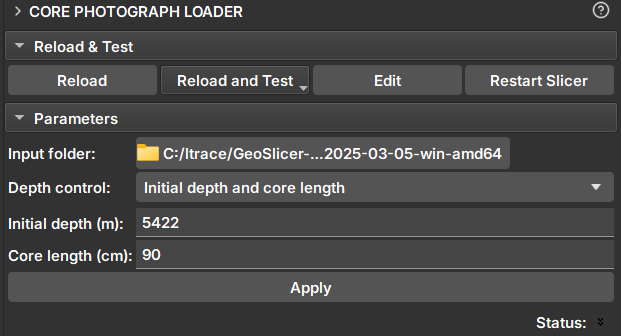

Figure 1: Core Photograph Loader Module.

Parameters

  • Input folder: Directory containing the core box images. Adds directories that contain core data. These directories will appear in the Data to be processed list. During execution, data will be searched only one level below.

  • Depth control: Choose the method to set the core boundaries:

    • Initial depth and core length
      • Initial depth (m): Depth of the top of the core.
      • Core length (cm): Length of the core.
    • Core boundaries CSV file
      • Core depth file: Selector for a CSV file containing core boundaries in meters. In the same CSV file format as the Multicore Module.
    • From photos (OCR)
