Multicore Transform

GeoSlicer module to manually modify the orientation and depth of cores.

Panels and their usage

Figure 1

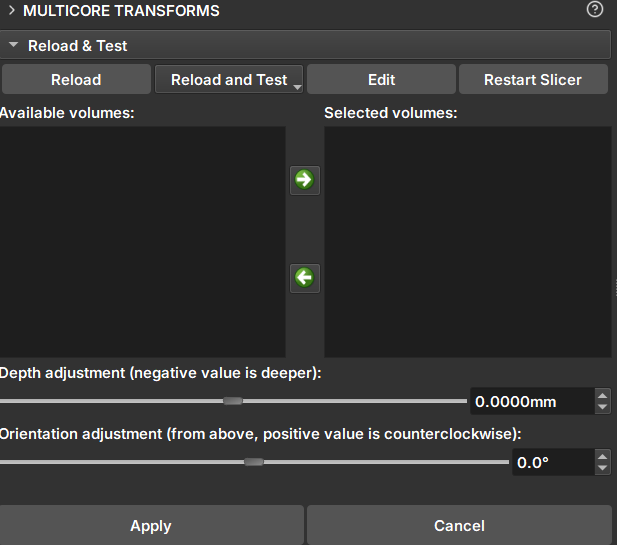

Figure 1: Multicore Transform Module.

Transform

  • Available volumes/Selected Volumes: The Available volumes area displays the volumes that can be modified by the module. Clicking the green arrow pointing to the right moves the selected volumes to the Selected Volumes area. To remove them from this area, use the green arrow pointing to the left.

  • Depth adjustment: Applies translation to the volume's depth. Negative values are deeper.

  • Orientation adjustment: Applies a counter-clockwise rotation to the volume.

  • Apply: Applies the depth and orientation changes.

  • Cancel: Cancels the changes and clears the previous fields.
