Thin Section Loader

The ThinSectionLoader module is designed to efficiently load and process thin section images in the Thin section environment. It imports PNG, JPG/JPEG, BMP, GIF, and TIFF images. It integrates automated scale detection using Tesseract OCR, ensuring accurate pixel size estimation. The module also includes advanced options for lossless image manipulation and allows manual adjustments to image spacing parameters, making it adaptable to diverse geological analysis needs.

Panels and their usage

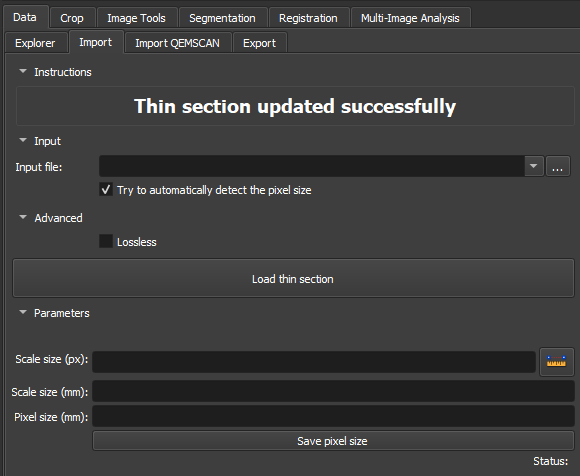

Figure 1
Figure 1: Presentation of the Thin Section Loader module.

Main options

  • Input file: Choose the path of the Image to be imported. The most commonly used extensions are: PNG, JPG/JPEG, BMP, GIF, and TIFF.

  • Advanced Lossless: Using a lossless compression option ensures that the original image quality is fully preserved, without data loss during the process.

  • Scale size(px): Section to define the pixel range used in the pixels per millimeter ratio. The ruler icon on the right allows adding a mark on the image scale, facilitating this definition.

  • Scale size(mm): Section to define the size in millimeters of the selected pixel range. If the ruler was used on the image scale, the value should be corresponding.

  • Pixel size(mm): Ratio between pixels/mm can be defined or result from the measurement of the Scale size(px) and Scale size(mm) fields.

  • Save pixel size: Once the pixels/mm ratio is defined, the button links the value to the image.

Workflow

PP / PX / Others

Thin Section Loader

Use the Loader Module to load thin section images, as described in the steps below:

  1. Use the Add directories button to add directories containing thin section data. These directories will appear in the Data to be loaded area (a search for thin section data in these directories will occur in subdirectories up to one level below). You can also remove unwanted entries by selecting them and clicking Remove.
  2. Define the pixel size (Pixel size) in millimeters.
  3. Optionally, activate Try to automatically detect pixel size. If successful, the detected pixel size will replace the value configured in Pixel size.
  4. Click the Load thin sections button and wait for the loading to complete. The loaded images can be accessed in the Data tab, within the Thin Section directory.
