Remote computing

The GeoSlicer allows the user to connect to a remote account, via ssh, to access computational resources such as clusters. Currently, the implemented model is closely tied to Petrobras' execution requirements; however, any machine can be accessed by the Job Monitor module, as long as it has SSH access enabled and is accessible on the network.

Connection

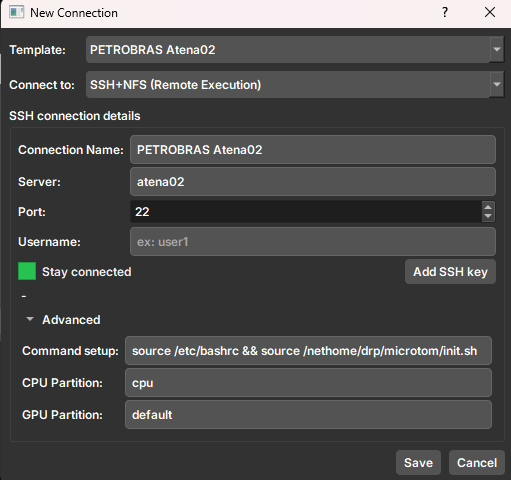

The account must be registered, as can be seen in Figure 1. The user must fill in the fields according to their access credentials. If the user has an SSH key, they can insert the path to the key by clicking on Add Key.

Note that the user can configure other parameters related to what will happen when the connection is established. For example, the "Command Setup", which is the command executed immediately upon establishing the connection. The other parameters are specific to Petrobras' cluster.

Accounts

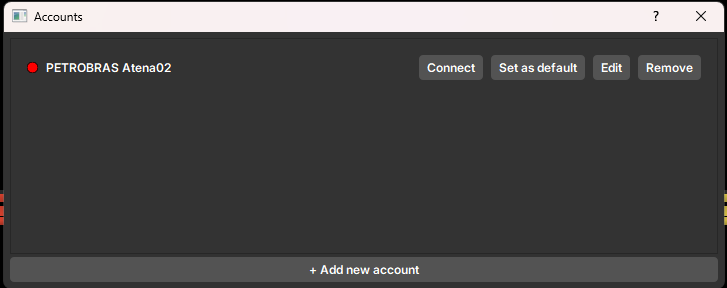

Registered accounts are managed on the accounts screen, as can be seen in Figure 2. Here, the user can see which accounts are active, remove, and edit the registered accounts.

Job Monitor

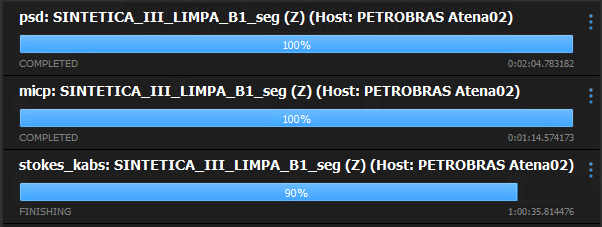

The Job Monitor module is responsible for monitoring the jobs that are being executed on the remote machine. Through it, the user can track the progress of running tasks. Currently, only tasks from the Microtom module are sent remotely. The Job Monitor is accessed through the dialogue bar, in the lower right corner.
